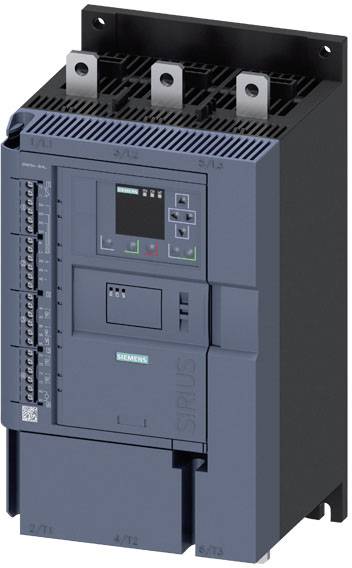

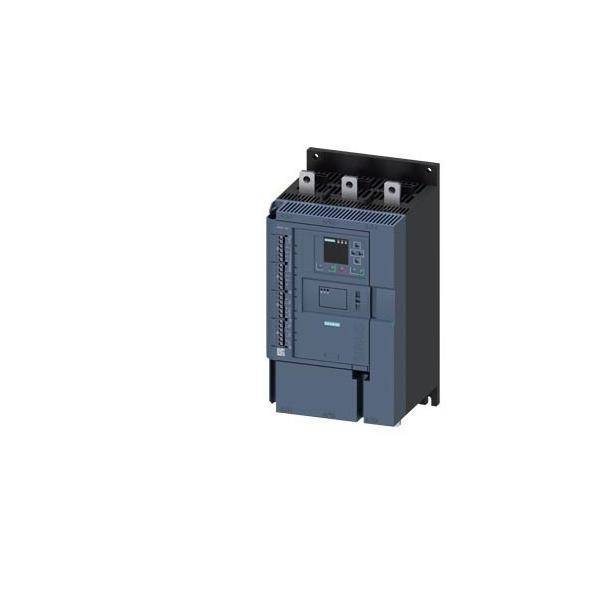

Siemens 3RW5543-6HA04 3RW55436HA04 Arranque progresivo Potencia del motor a 400 V 110 kW Potencia del motor a 230 V 55 k
Ficha técnica (PDF)
EAN:
N.º pieza fabr.:
N.º artículo:
Especificaciones técnicas
- Tensión del motor
200-480 V V
- Tipo de producto
Arranque progresivo
- Corriente de conexión
210 A
- Potencia del motor a 230 V
55 kW
- Potencia del motor a 400 V
110 kW
- Tensión nominal
200 V
480 V
- fases activas
3
- Fabricante de la pieza.
3RW55436HA04
- Corriente nominal
210 A
- Corriente nominal: redondeada
210 A
- tipo
3RW5543-6HA04
- Tiempo de funcionamiento hasta la parada
360 s

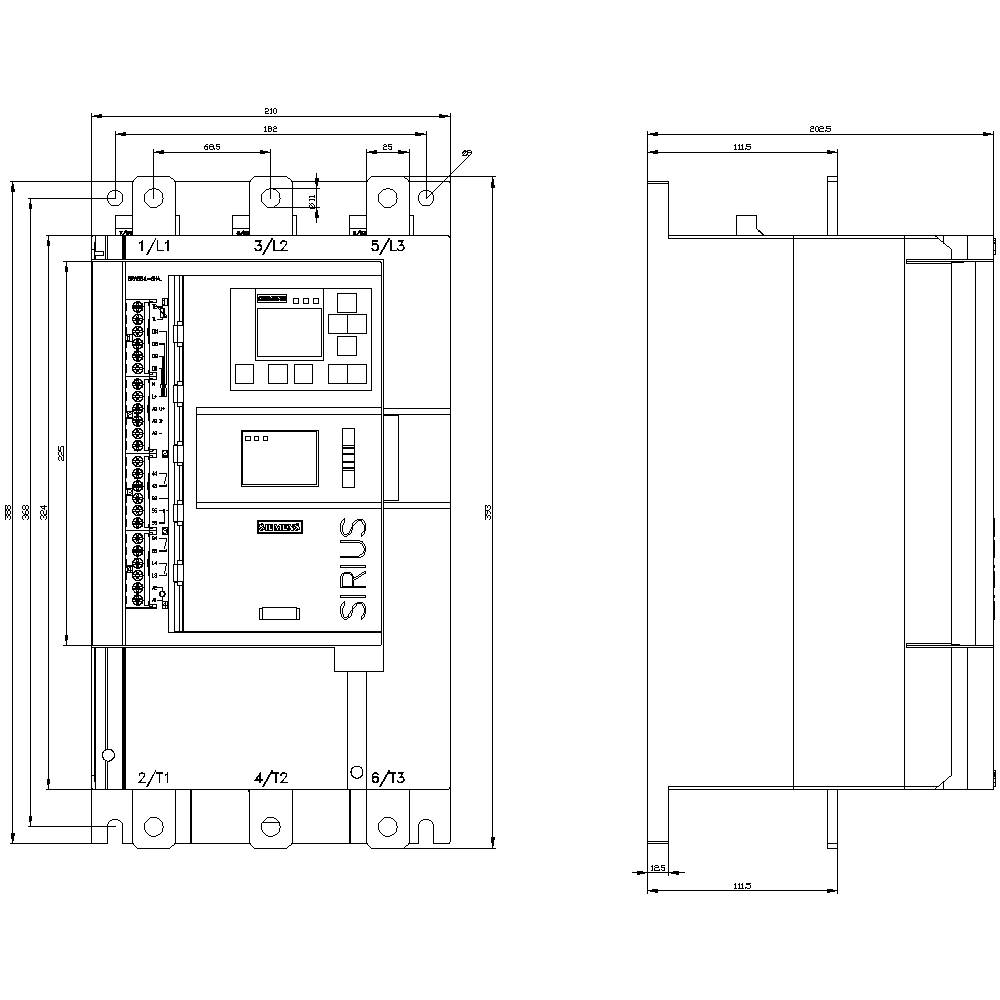

- Dimen.
( x x ) 210 x 393 x 203 mm
- conexión
Conexión en vía
- Anchura
210 mm
- Altura
393 mm
- Profundidad
203 mm
- Máx. Temperatura
+60 °C
- min temperatura.
-25 °C
- UKCA
Sí
Documentos y descargas
Ficha técnica
Ficha técnica 2263228 Siemens 3RW5543-6HA04 3RW55436HA04 Arranque progresivo Potencia del motor a 400 V 110 kW Potencia del motor a 230 V 55 k
Indicaciones de uso y seguridad
Indicaciones de uso y seguridad 2263228 Siemens 3RW5543-6HA04 3RW55436HA04 Arranque progresivo Potencia del motor a 400 V 110 kW Potencia del motor a 230 V 55 k
Descripción
SIRIUS soft starter 200-480 V 210 A, 24 V AC/DC Screw terminals Soft starter SIRIUS 3RW55 High Performance for demanding applications for soft starting and stopping of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative torque control ensures ideal motor startup. Simple and fast commissioning by means of auto-parameterization or application wizard. Predictive maintenance planning due to condition monitoring. Detachable HMI with color display for clear presentation of measured values and diagnostics. Worldwide approvals (e.g. IEC and UL/CSA).
The High Performance 3RW55 soft starters are available for supply systems up to 690 V in a performance range up to 560 kW with 24 V or 110-250 V control supply voltages and all with both screw and spring-type terminals. Analog output and thermistor motor protection are fixed components of the High Performance soft starter.

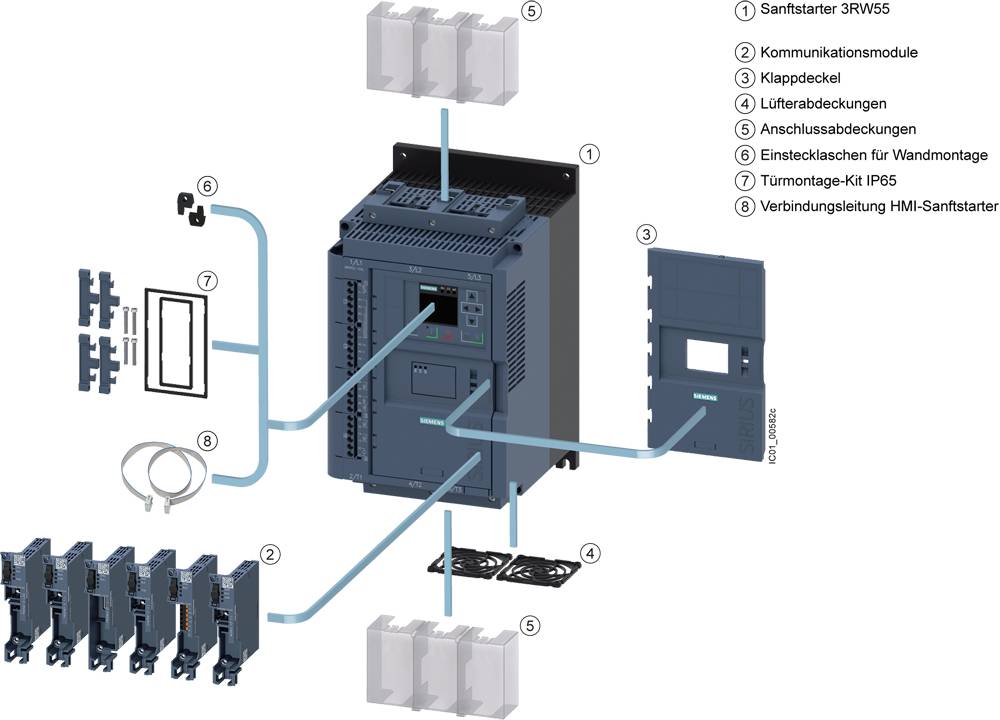

Optional plug-in communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. The built-in HMI module can also be mounted in the control cabinet door.
The 3RW55 soft starters replace the tried and tested 3RW44 series.
SIRIUS 3RW5 soft starters - As flexible as your tasks.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative torque control ensures ideal motor startup. Simple and fast commissioning by means of auto-parameterization or application wizard. Predictive maintenance planning due to condition monitoring. Detachable HMI with color display for clear presentation of measured values and diagnostics. Worldwide approvals (e.g. IEC and UL/CSA).
The High Performance 3RW55 soft starters are available for supply systems up to 690 V in a performance range up to 560 kW with 24 V or 110-250 V control supply voltages and all with both screw and spring-type terminals. Analog output and thermistor motor protection are fixed components of the High Performance soft starter.
Optional plug-in communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. The built-in HMI module can also be mounted in the control cabinet door.
The 3RW55 soft starters replace the tried and tested 3RW44 series.
SIRIUS 3RW5 soft starters - As flexible as your tasks.
